Custom Waterproof 52mm Dual Gauge 2 in 1 Multifunction Gauges Fuel Level Water Level Meter HTG Sewage Gauge Volt for Boat Yacht(Orange)

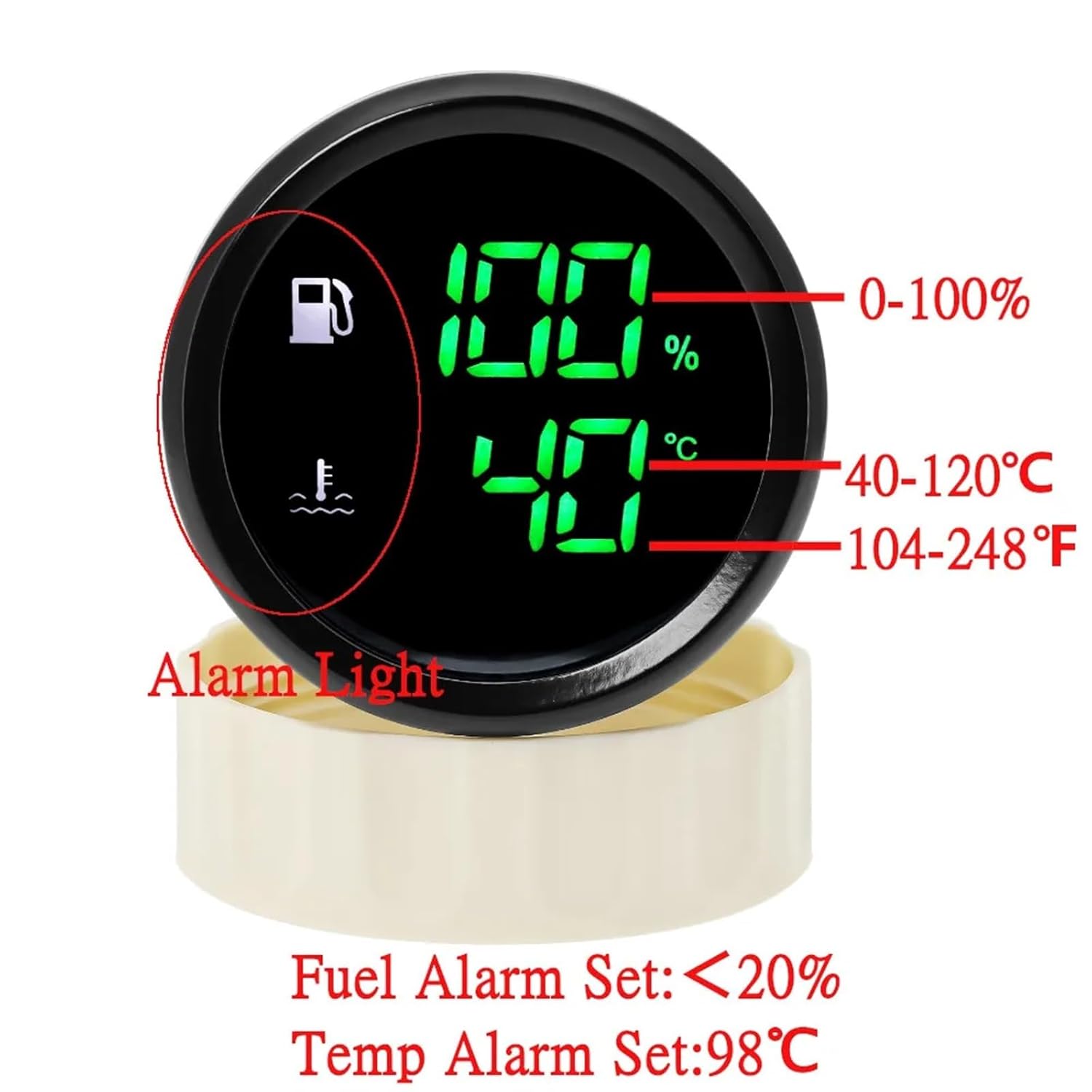

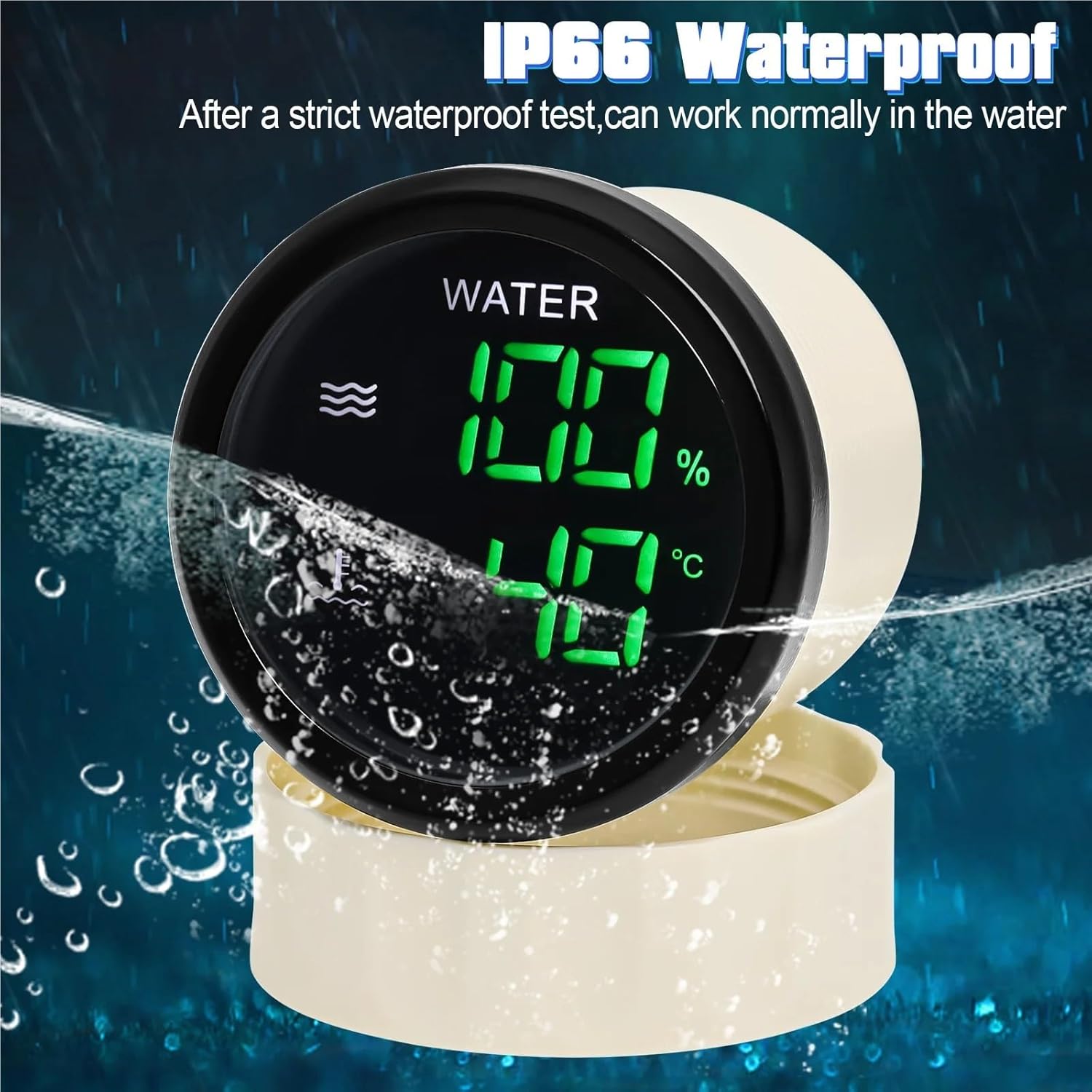

Oil Pressure GaugesHD Waterproof 52mm Dual Gauge 2 In 1 Multifunction Gauges uel Level Water Level Meter HTG Sewage Gauge Voltmeter for Boat Yacht 12v/24vAbout the Gauge Reading:The device works, with a little delay (about 20-80 seconds) of changes in the readings. Apparently, it is done in order not to react to the splash of water in the tank.Feature:- 52mm diameter Two in One Gauge show with easy installation- Programmable Input Resistance Ohm Signal to adapt different fuel /water/temperature sensor0-190, 0-180, 10-180, 240-33, 240-30- High Resolution View under sunshine- Installation Diameter: 52mm (2inch)- Reverse polarity protection and anti-fogging performance- Working Voltage:12V/24V- Working temperatures: - 40 to 85°C- IP66 Waterproof- Fuel Level Gauge Alarm Set:20%-Water Temperature Gauge Alarm Set : 98±2Connection:black line connect to the negative line,red line connect to the positive line,green line connect to the sensor signal line,yellow line is exchange button lineBacklight :- Green Backlight - Red alarm lightWater Temperature Range : 40~120 / 104~2481. All units with water temperature can be switched to or F by pressing the key2. You can press the key to set the alarm parameters. When the alarm threshold is reached, the icon will become red backlightINSTALLATION GUIDE1. Cut an 52mm (2-1/16") hole in the panel (II) allow a clearance of 55mm (2 3/16"). behind the panel.2. Remove fastening ring (I), insert gauge from front. Tighten gauge (III) using fastening ring ( I)3. Connect cables according to the diagram/label.Setting Menu:"Unit" "R 1" "R 2"1.Hold & Press the button Power On Gauge the LED screen will show Switch Show Unit, R1, R2 2.UnitFuel Gauge, Water Level, HTG Sewage Level: %Water temperature: or 3.R1---Configure Top Row Signal Range Press Button to switch 000 ~006For example, LED will show 001, which means 0~180ohm, then release the button and wait digital flash to complete to save setting4.R2---Configure Top Row Signal Range Press Button to switch 000 ~006.For example, LED will show "002" , which means 10~180ohm, then release the button and wait digital flash to complete to save settingPackage include1 x 52mm Gauge52mm GaugeFuel and water tempFuel and tempWater and Sewage Level MeterFuel and VoltmeterWater and fuel==========High-concerned chemical : NoneOther Part Number : fuel level gaugePlacement on Vehicle : Front Part Number : Auto Digital Fuel Level GaugeInterchange Part Number : Mini Digital Fuel Meter Motorcycle GaugeSpecial Features : 0-190ohm Fuel GaugeItem Weight : 0.5kgItem Height : 0Item Width : 52mmItem Length : 52mm Boat Fuel Tank Level Gauge NO. : Fuel level gaugeMaterial : stainless steel 316L bezel+anti-fog glassItem name : 2 In 1 Dual 52mm GaugeFuel Level Sensor Signal : 0~190ohmType : Fuel Gauges for Auto Boatfeture : Auto Digital Fuel Level Gaugeboat car fuel gauge : fuel level sensorApplication : Car Fuel Gauge for car truck yachtfuel gauge sending sensor : fit Fuel Level Meterfuel gauge sending sensor support : Water Liquid Level Gauge MeterWater Liquid Meter : Car Boat Water Tank Level GaugeFuel Sending Unit : fit for Water Level Gauge Fuel level gauge5 Holes Sensor Support : Fuel Level Gauge, Water Level GaugeLEVEL SENSOR : boat fuel gaugeWater temp gauge : Temperature SensorWater Temp Gauge : 40-120 Celsius, 104-248Working VOLT : 9-32V52mm Fuel Level Gauge : Oil Tank Level Meter Indicator2" 52mm Dual Gauge : Multi Gauge52mm Gauge : Green LED LightHTG Gauge : HTG Sewage GaugeCar voltmeter : voltage gauge meter
